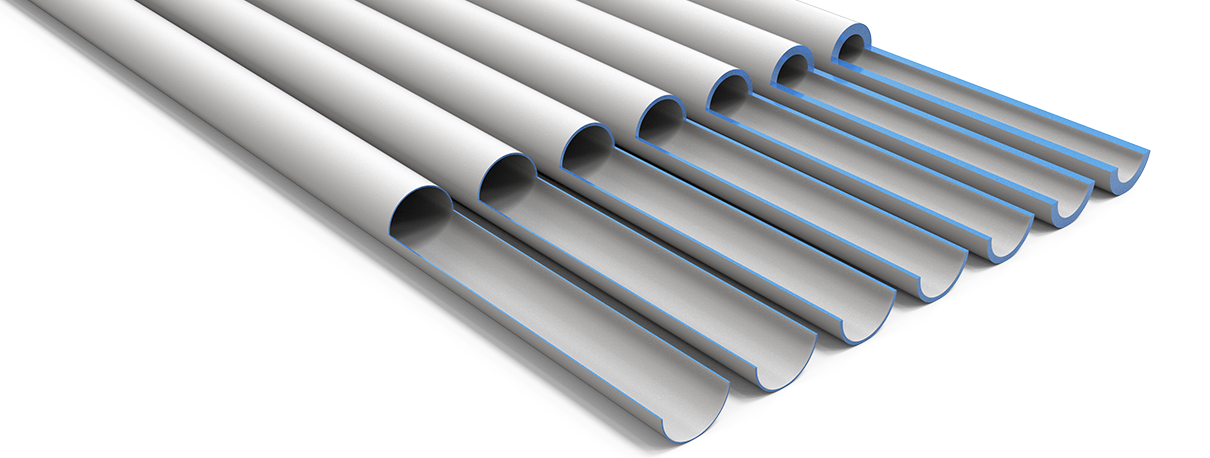

O.D: 60.3mm Seamless Steel Tubes

Home / Products / Seamless Steel Tubes

Bright tube
Pickling tube

O.D: 60.3mm Seamless Steel Tubes

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:1.2mm - 11.07mm

Bright tube
Pickling tube

MIN - 1.2mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:1.2mm

Bright tube
Pickling tube

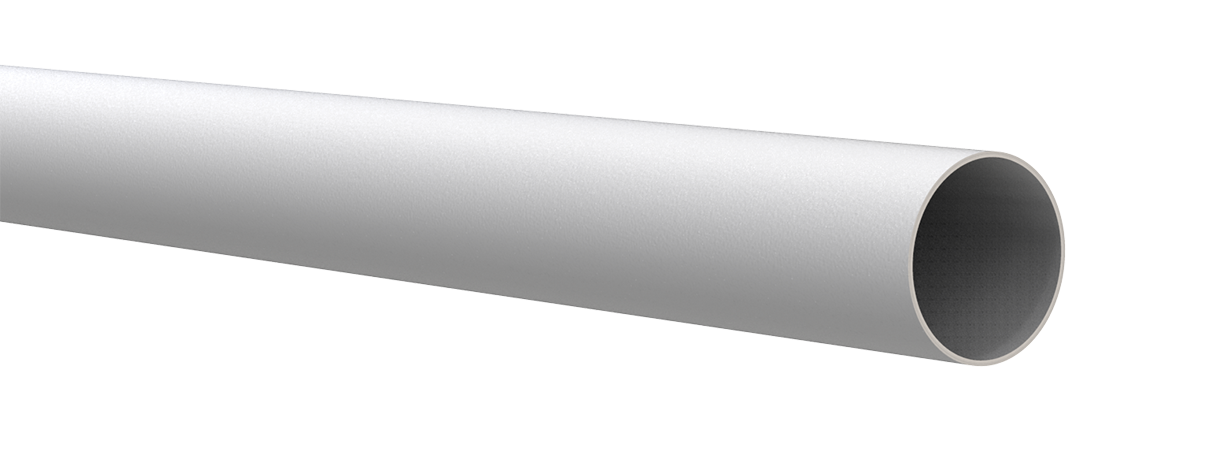

SCH5s - 1.65mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:1.65mm

Bright tube
Pickling tube

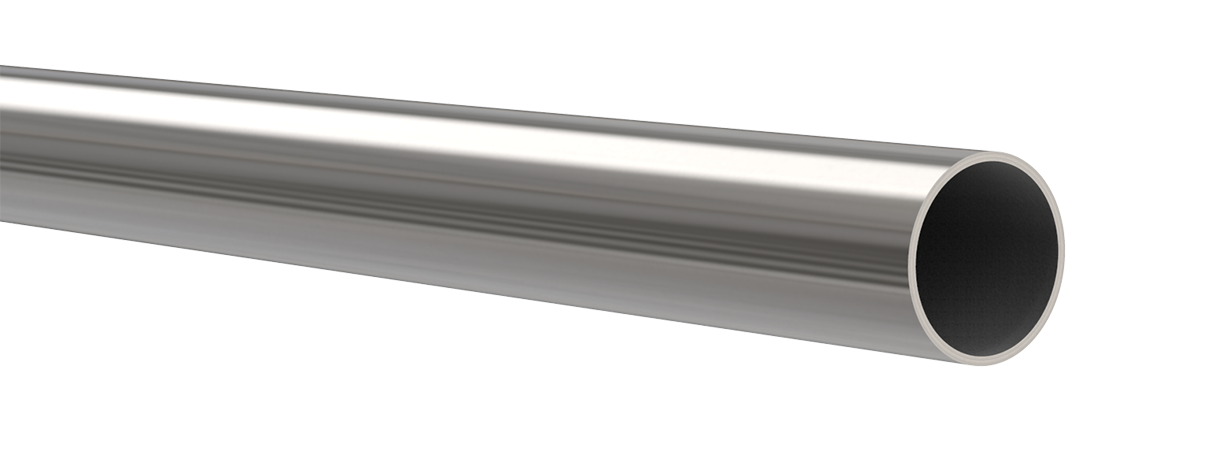

SCH10s - 2.77mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:2.77mm

Bright tube
Pickling tube

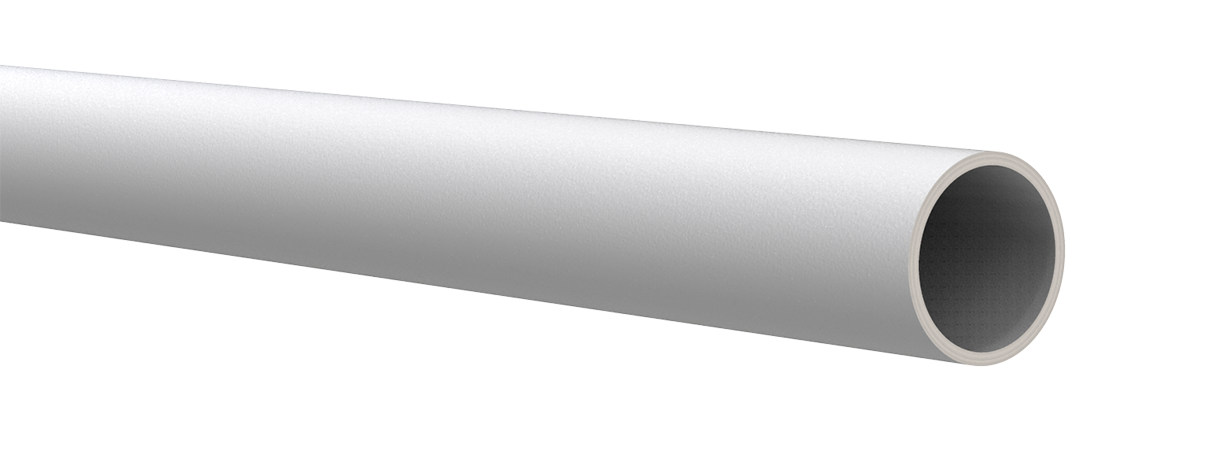

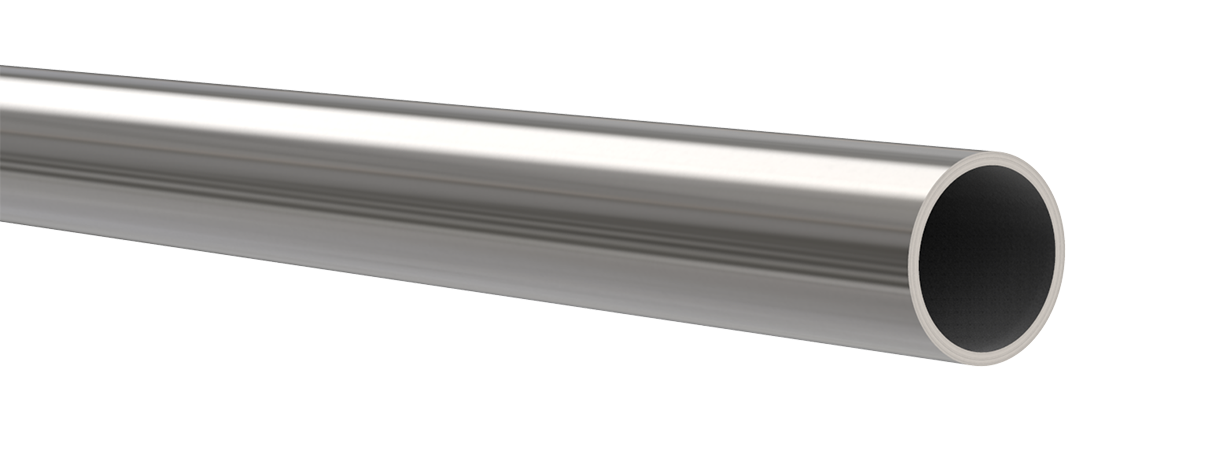

SCH40s - 3.91mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:3.91mm

Bright tube
Pickling tube

STD - 3.91mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:3.91mm

Bright tube
Pickling tube

SCH40 - 3.91mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:3.91mm

Bright tube
Pickling tube

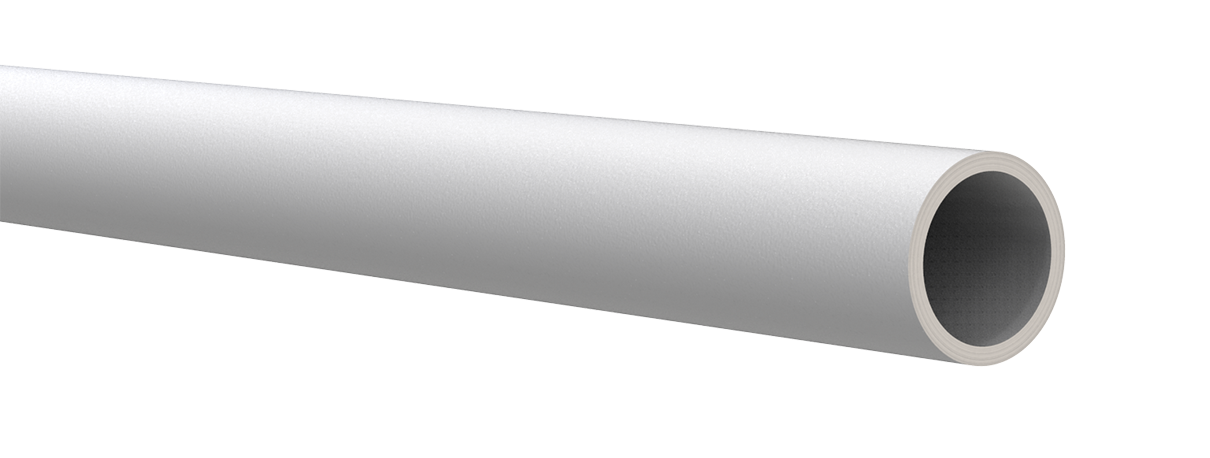

SCH80s - 5.54mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:5.54mm

Bright tube
Pickling tube

XS - 5.54mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:5.54mm

Bright tube
Pickling tube

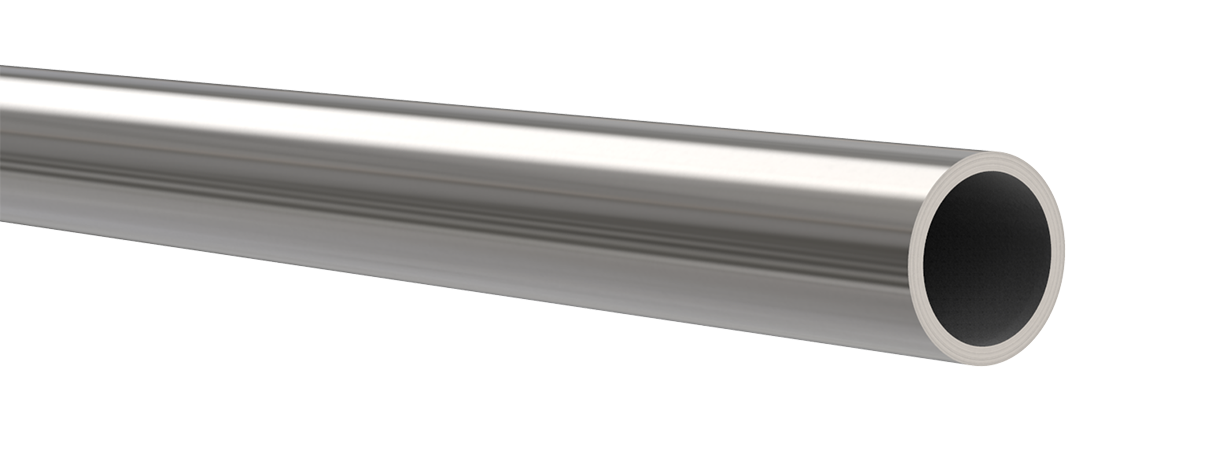

SCH80 - 5.54mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:5.54mm

Bright tube
Pickling tube

SCH160 - 7.14mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:7.14mm

Bright tube
Pickling tube

XXS - 10.15mm

American Standard ANSI B36.10 / B36.19M

MIN:1.2mm
BN:50
O.D:60.3mm
NPS:2
W.T:10.15mm

Stainless steel pipe:

MIN: 1.2m
SCH5s: 1.65mm
SCH10s: 2.77mm
SCH40s: 3.91mm
STD: 3.91mm
SCH40: 3.91mm
SCH80s: 5.54mm
XS: 5.54mm
SCH80: 5.54mm

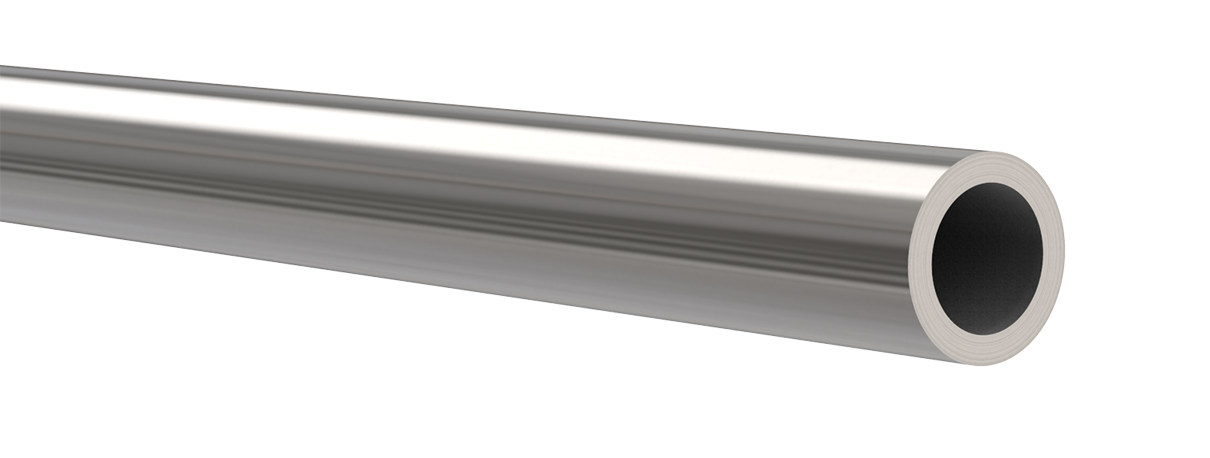

SCH160: 8.74mm
XXS: 11.07mm

Product Description:

It is a precipitation hardening type of high strength stainless steel. It has excellent corrosion resistance equivalent to that of austenitic stainless steels, and also provides high strength equivalent to chromium stainless steels which have a quench-hardening capacity.

• Outside Diameter60.3mm
• Circular hollow sections up to 1.65mm - 11.07mm

Advantages of Seamless Steel Tubes:

• Excellent formability
• Good weldability
• Excellent corrosion resistance
• Fire resistance
• Toughness at low temperatures

Product Specifications:

NORMINAL PIPE SIZE		OUTSIDE DIAMETER		NORMINAL WALL THICKNESS		TECHNOLOGY
NPS	BN	D		MIN		SURFACE TREATMENT
2	50	60.3mm		1.2		Bright

Heat Treatment	It is normally supplied in a solution-treated condition. However, in order to obtain the maximum mechanical properties, it is necessary to perform H900 precipitation hardening heat treatment after working. If ductility is required, we recommend using H1150 precipitation hardening heat treatment. In this case, it is possible to perform precipitation hardening heat treatment of the base material, as working is also possible after precipitation hardening. Heat treatment conditions • H900 precipitation hardening: 470~490℃; air cooling • H1150 precipitation hardening: 610~630℃; air cooling
Weldability	Excellent weldability. By various welding methods. The maximum welding efficiency can be obtained by conventional treatment after welding.
Bright	The surface state corresponding to the manufacturing method and heat treatment method used: clean internal and external surfaces, no oxide layer, no crack, folding, rolling, scarring, delamination, hairline
Applications	General purpose stainless steel. Provides excellent performance balance while being easy to use. Food equipment, general chemicals, daily necessities.
