O.D: 26.7mm Seamless Steel Tubes

Home / Products / Seamless Steel Tubes

Bright tube
Pickling tube

O.D: 26.7mm Seamless Steel Tubes

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:1.65mm - 7.82mm

Bright tube
Pickling tube

MIN - 0.8mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:0.8mm

Bright tube
Pickling tube

SCH5s - 1.65mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:1.65mm

Bright tube
Pickling tube

SCH10s - 2.11mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:2.11mm

Bright tube
Pickling tube

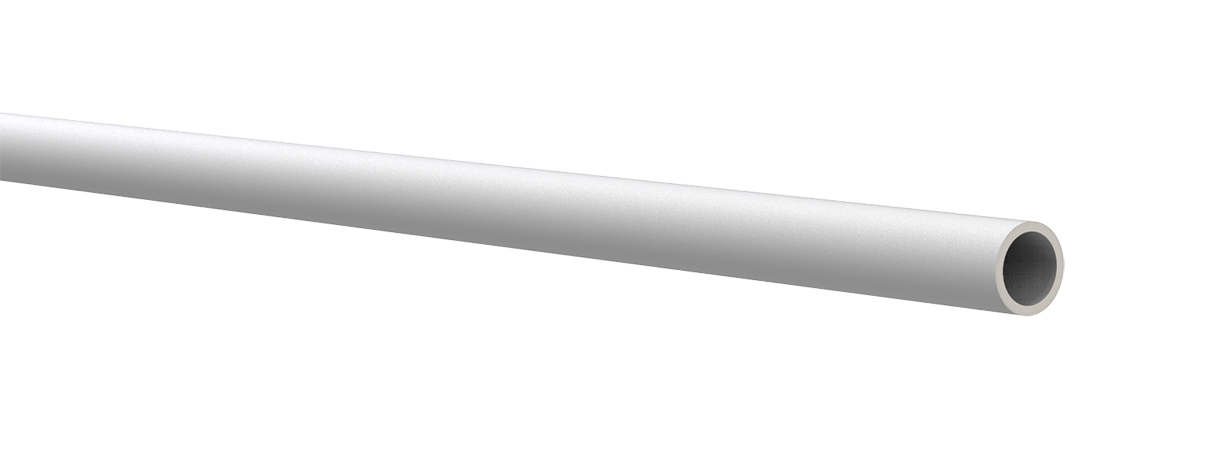

SCH40s - 2.87mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:2.87mm

Bright tube
Pickling tube

STD - 2.87mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:2.87mm

Bright tube
Pickling tube

SCH40 - 2.87mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:2.87mm

Bright tube
Pickling tube

SCH80s - 3.91mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:3.91mm

Bright tube
Pickling tube

XS - 3.91mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:3.91mm

Bright tube
Pickling tube

SCH80 - 3.91mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:3.91mm

Bright tube
Pickling tube

SCH160 - 5.56mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:5.56mm

Bright tube
Pickling tube

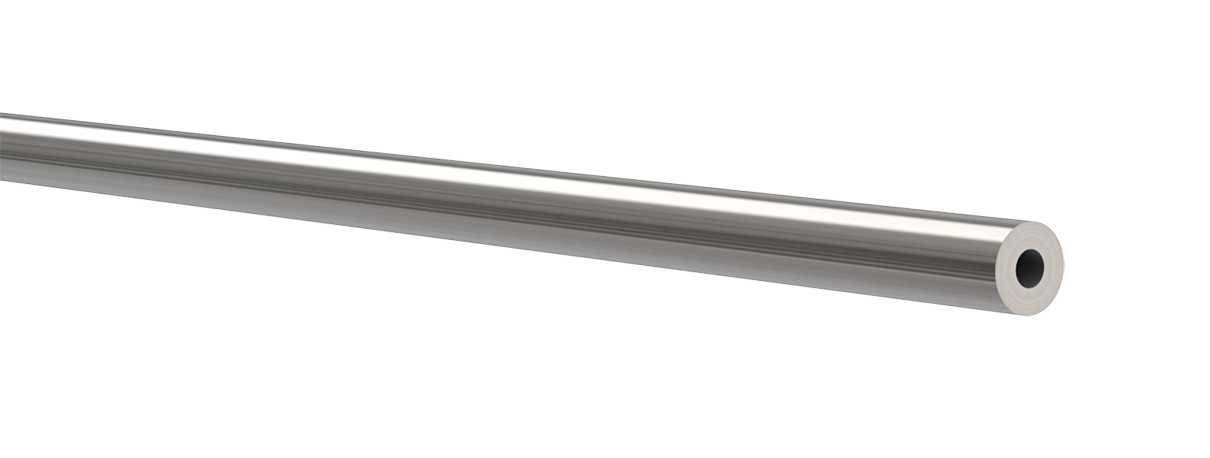

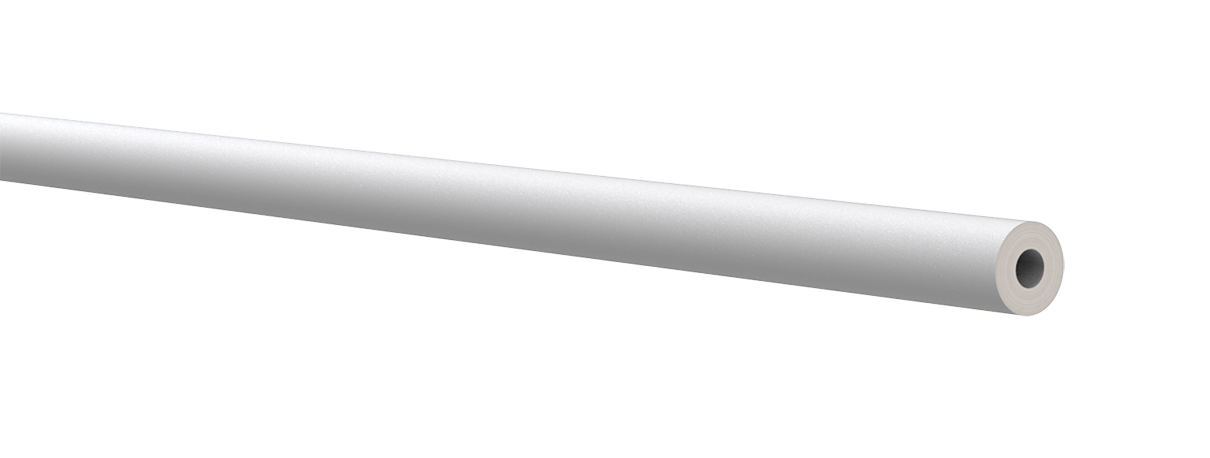

XXS - 7.82mm

American Standard ANSI B36.10 / B36.19M

MIN:0.8mm
BN:20
O.D:26.7mm
NPS:3/4
W.T:7.82mm

Stainless steel pipe:

MIN:0.8mm
SCH5s: 1.65mm
SCH10s: 2.11mm
SCH40s: 2.87mm
STD: 2.87mm
SCH40: 2.87mm
SCH80s: 3.91mm
XS: 3.91mm
SCH80: 3.91mm
SCH160: 5.56mm
XXS: 7.82mm

Product Description:

It is a precipitation hardening type of high strength stainless steel. It has excellent corrosion resistance equivalent to that of austenitic stainless steels, and also provides high strength equivalent to chromium stainless steels which have a quench-hardening capacity.

• Outside Diameter26.7mm
• Circular hollow sections up to 1.65mm - 7.82mm

Advantages of Seamless Steel Tubes:

• Excellent formability
• Good weldability
• Excellent corrosion resistance
• Fire resistance
• Toughness at low temperatures

Product Specifications:

NORMINAL PIPE SIZE		OUTSIDE DIAMETER		NORMINAL WALL THICKNESS		TECHNOLOGY
NPS	BN	D		MIN		SURFACE TREATMENT
3/4	20	26.7mm		0.8		Pickling

Heat Treatment	It is normally supplied in a solution-treated condition. However, in order to obtain the maximum mechanical properties, it is necessary to perform H900 precipitation hardening heat treatment after working. If ductility is required, we recommend using H1150 precipitation hardening heat treatment. In this case, it is possible to perform precipitation hardening heat treatment of the base material, as working is also possible after precipitation hardening. Heat treatment conditions • H900 precipitation hardening: 470~490℃; air cooling • H1150 precipitation hardening: 610~630℃; air cooling
Weldability	Excellent weldability. By various welding methods. The maximum welding efficiency can be obtained by conventional treatment after welding.
Pickling	In pickling of comparatively thick scale after solution treatment or hot working, the methods used with austenitic stainless steels can be used.
Applications	General purpose stainless steel. Provides excellent performance balance while being easy to use. Food equipment, general chemicals, daily necessities.
